3D Panel Fencing
3D Panel Fencing

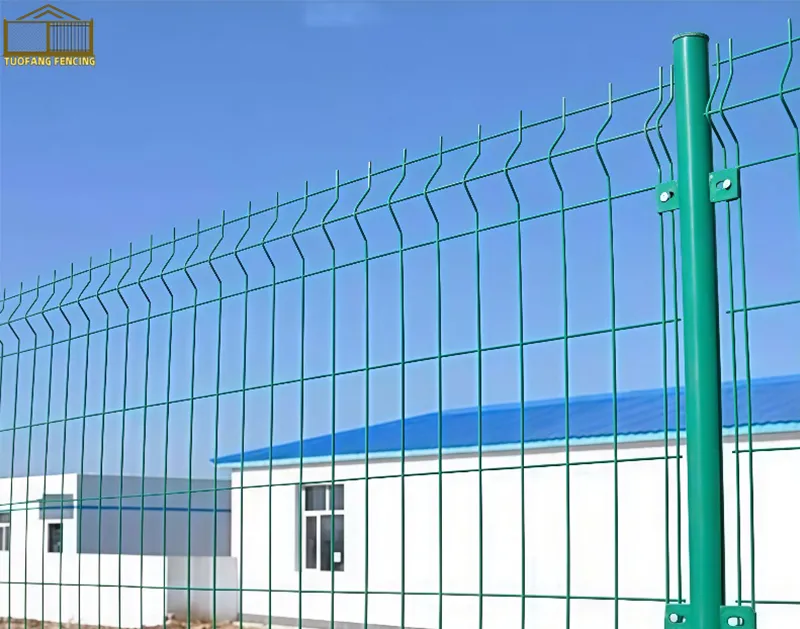

3D penel fence, also known as triangle bend welded mesh fences, are one of the most popular perimeter fencing solutions for residential, commercial, and public areas. The panels are made of welded steel wires with V-shaped bends, which enhance strength and provide a modern, attractive appearance.
A curvy fence panel is a secure and visually appealing fencing solution, ideal for residential areas and various entertainment venues. Also known as 3D fencing, it is typically manufactured from stainless steel or carbon steel. The wires are first welded into a panel and then shaped using a bending machine to form V-shaped curves along the shorter side of the rectangular mesh. The number of these V-curves depends on the height of the panel. By applying the principle of triangular stability, the curves significantly enhance the fence’s strength, rigidity, and resistance to deformation.

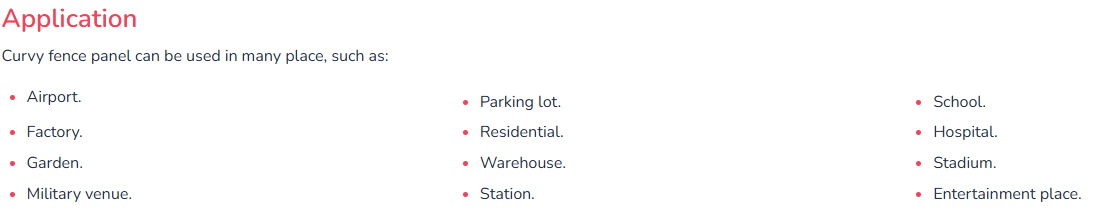

3D Wire Fence Panels can be installed on flat ground, slopes, or uneven surfaces such as sandy soil. With their stable, durable, and flexible structure, they are widely used in airports, schools, factories, residential communities, gardens, warehouses, stadiums, military facilities, and entertainment areas. Lower fence heights are suitable for general applications, while higher panels are recommended for high-security locations such as military areas or prisons. You can select the fence height according to your specific application requirements.
· Attractive and modern appearance
· V-shaped bends enhance overall strength and rigidity
· Strong anti-corrosion performance with galvanized or PVC-coated surface
· Wide application range and easy installation
· Available in multiple specifications and sizes
· Suitable for various ground types, including concrete, slopes, general soil, sand, and roc
Tuofang offers free Wire Mesh Fence Panels samples and technical support
| Product Specifications | |
| Product Name | Curvy Welded Mesh Fence |
| Panels Material | low carbon steel or galvanized steel wire |
| Post Material | high grade steel tube |
| Color | Green / Black / Grey / Customized |
| Key Features | Anti-rust, High strength, Easy installation, Modern appearance |
| Application | Residential areas, Parks, Schools, Industrial sites, Gardens |
| Structure Feature | V-shaped curves for extra strength; Rigid welded mesh; Stable frame |
| Packing & Delivery | Pallet with plastic film / Customized packing |
| Customization | Size & color customizable |
| Origin | Hebei, China |
3D Mesh Fence Standard Size
| Fence Post | |
| Material | high grade steel tube. |
| Post type | square.round. peach. |
| Post dimension | Rectangular (mm): 40x60. 50x50. 60x60. 70x70. 80x 80.Round (mm): 38x42. 48x60.Peach (mm): 50x70. 70x100. |
| Color | same as panel. |
| Accessories | Fence cap. clamps & screws are all available from us. |
Standard Size
| Fence Panels | |
| Material | low carbon steel or galvanized steel wire. |
| Surface Treatment | Black steel wire &Hot dipped galvanizedElectro-galvanized wire & PVC coatingHot dipped galvanized wire & powder coating |
| Wire diameter | 3mm, 4mm, 5mm. etc |
| Mesh opening | 50x200 mm.75x200 mm, 50x 150 mm. 50x 100 mm, 75x 150 mm. etc. |
| Panel width | 2000mm, 2200m, 2500m, 3000mm. |
| Panel height | 630 mm. 830 mm. 1030 mm, 1230 mm, 1530 mm, 1730 mm. 2030 mm. 2430 mm. |
| Color | Green / Black / Grey / Customized |
Wholesale 3D fence panels undergo three strict quality inspections: raw material inspection, first-sample and process inspection, and final pre-packing inspection. Customers may also choose independent third-party agencies—such as SGS or CCIC—for additional testing and verification.
In addition, as a 3D Wire Fence Panels Manufacturer, Tuofang provides comprehensive after-sales support to ensure any product issues are resolved promptly and effectively.
More
Close
NEWS CENTER
Our company realizes the integration of industry and trade, which enables it to quickly respond to customer demand.
May. 25, 2026
High-Security Fence Panels Are Worth It
Securing your property requires more than just a standard fence. High-security fence panels are designed to provide superior durability, tamper resistance, and protection against unauthorized access. If preventing intrusion and protecting sensitive areas are top priorities, high-security fencing can be a reliable long-term solution.
May. 13, 2026

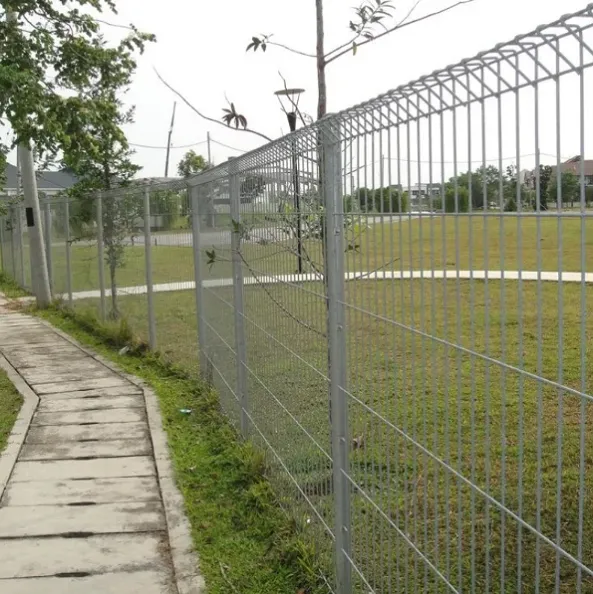

Galvanized BRC Fencing Guide: Durable, Secure, and Versatile
BRC fencing, commonly referred to as roll-top fencing, is manufactured using high-strength steel wires that are welded at each intersection, forming a rigid and uniform mesh structure.
Apr. 20, 2026

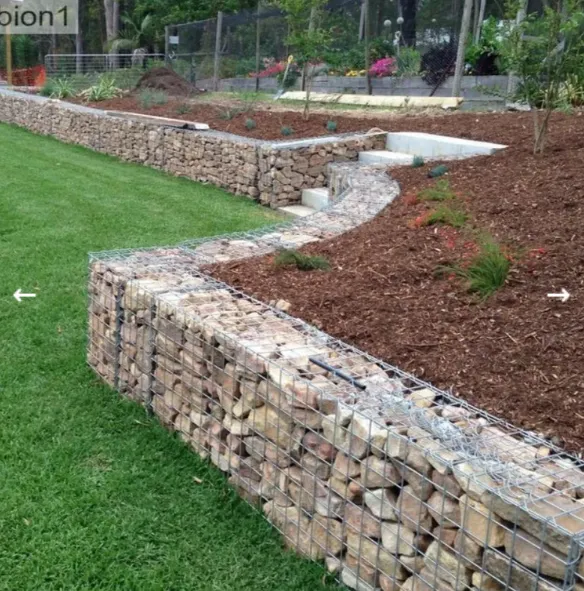

Choose Gabions: Welded or Woven? The Complete Guide for Engineers and Buyers
Welded gabions are made by welding steel wires at intersections to form rigid square or rectangular mesh panels.
Apr. 08, 2026

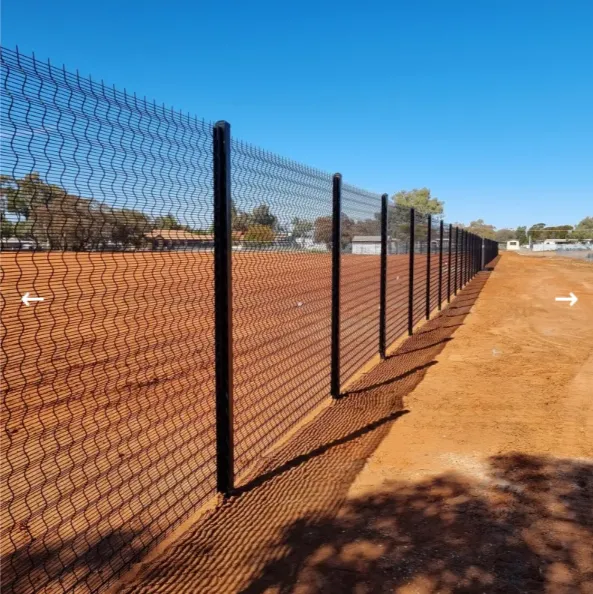

What Is 358 Fence? Complete Guide to High-Security Mesh Fencing
