Chain-Link Fence, also known as diamond mesh fence or cyclone fence, is one of the most widely used and cost-effective fencing solutions. It is woven from galvanized or PVC-coated steel wire into a diamond-shaped mesh, offering durability, flexibility, and excellent visibility.
Chain link wire mesh fence are different from chain link fencing supplied in rolls. The edges of each panel are directly connected to the chain link fence posts. These panels are available in galvanized, PVC-coated, and stainless steel types. They are also widely used as temporary fence systems for events, construction sites, and other applications. In addition, chain link fence gates are made in the same panel style.
As a reliable Wire Mesh Fencing Supplier, we provide high-quality, customizable chain link panel solutions to meet the durability, security, and installation needs of various commercial and industrial projects.
Applications of Chain-Link Fence Panels
· Residential property boundaries.
· Gardens and playgrounds.
· Sports fields and tennis courts.
· Industrial areas and warehouses.
· Highway and railway fencing.
· Animal enclosures and farms.
Features & Benefits
· Strong and durable woven wire mesh.
· Flexible and easy to install on different terrains.
· Galvanized or PVC coated for long-lasting corrosion resistance.
· Cost-effective solution with low maintenance.
· Available in rolls with optional barbed wire or razor wire on top for enhanced security.
| Product Specifications |
| Product Name | Chain Link Fence |
| Material | Low Carbon Steel / Galvanized Steel |
| Surface Treatment | Hot-dip Galvanized / PVC Coated |
| Color | Silver / Green / Black / Customized |
| Structure Feature | Diamond-shaped mesh, flexible yet durable |
| Key Features | Anti-corrosion, Easy installation, Cost-effective, Long lifespan |
| Application | Residential fencing, Sports fields, Farms, Highways, Industrial areas |
| Packing & Delivery | Rolls with plastic film / Pallets / Customized |
| Customization | Size, mesh, and color customizable |
| Origin | Hebei, China |
Chain link fence
| Dimension of Galvanized chain Link |
| Mesh | Wire Diameter | Width | Length |
| 40mmx40mm | 1.8mm-3.0mm | 0.5m-4.0m | 5m-25m |
| 50mmx50mm | 1.8mm-3.5mm | 0.5m-4.0m | 5m-25m |
| 60mmx60mm | 1.8mm-4.0mm | 0.5m-4.0m | 5m-25m |
| 80mmx80mm | 2.5mm-4.0mm | 0.5m-4.0m | 5m-25m |
| 100mmx100mm | 2.5mm-4.0mm | 0.5m-4.0m | 5m-25m |
| Dimension of PVC Coated chain Link Mesh |
| Mesh | Wire Diameter | Width | Length |
| 40mmx40mm | 2.8mm-3.8mm | 0.5m-4.0m | 5m-25m |
| 50mmx50mm | 3.0mm-5.0mm | 0.5m4.0m | 5m-25m |
| 60mmx60mm | 3.0mm-5.0mm | 0.5m-4.0m | 5m-25m |
| 80mmx80mm | 3.0mm-5.0mm | 0.5m-4.0m | 5m-25m |
| 100mmx100mm | 3.0mm-5.0mm | 0.5m-4.0m | 5m-25m |
| Surface treatment | Min | Max |
| Electro Galvanized | 15g/m2 | 25g/ m2 |
| Hot dip galvanized | 30/ m2 | 366g/m2 |
| Hot dip galvanized | 400microns | 1000microns |
Our Product Range
· Standard Chain Link Wire Mesh Fence with various wire gauges and mesh openings to meet different security and visibility needs.
· Galvanized Chain Link Fence Panels / Galvanized Chainlink Fence — ideal for industrial sites, stadiums, and public facilities.
· Chain Link Privacy Fence Panels — designed for privacy strips or solid panels to enhance screening and noise control.

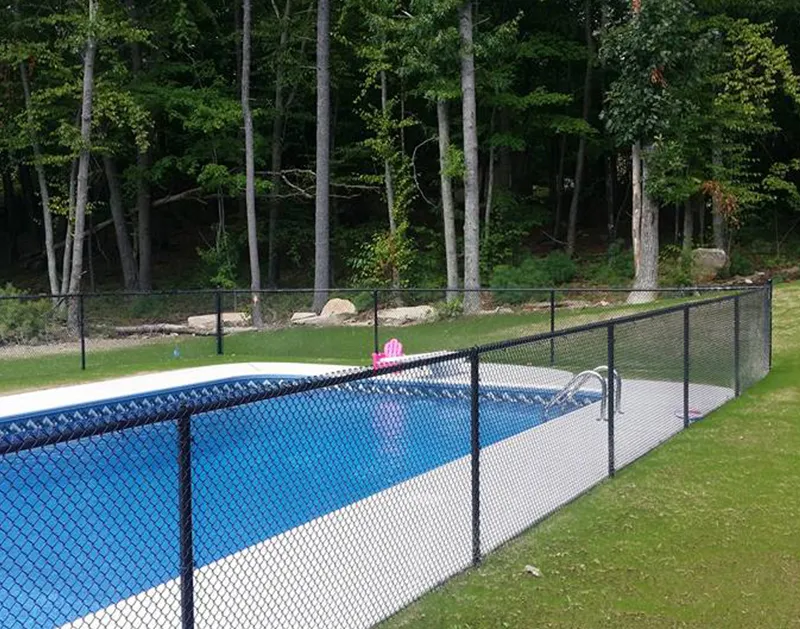

· Black Chain Link Fence Panels — widely used in urban landscapes and premium residential projects.
· OEM/ODM available. As a professional Chainlink Fence Manufacturer, we offer custom sizes, fittings, and project-based installation solutions.
