China Gabions Manufacturer | Factory-direct gabion baskets, gabion mattresses, welded gabions and landscaping gabions — OEM & bulk supply
We are a reliable China Gabions Factory producing engineered gabion systems for erosion control, retaining walls, river protection and architectural landscaping. Available finishes: hot-dip galvanized, galfan, PVC-coated and stainless steel. Mesh size, wire diameter, unit dimensions, coating and connection methods can be configured according to project drawings, required standards and installation conditions. Factory capacity for large projects, export experience, technical datasheets and on-request samples.
Select the Right Gabion for Your Project
| Product Type | Structure | Recommended Applications | Main Selection Factors |
|---|
| Gabion Baskets | Flexible double-twisted hexagonal wire mesh with internal diaphragms | Retaining walls, slope stabilization, riverbanks and road construction | Mesh opening, mesh/selvedge/lacing wire diameter, coating and basket size |

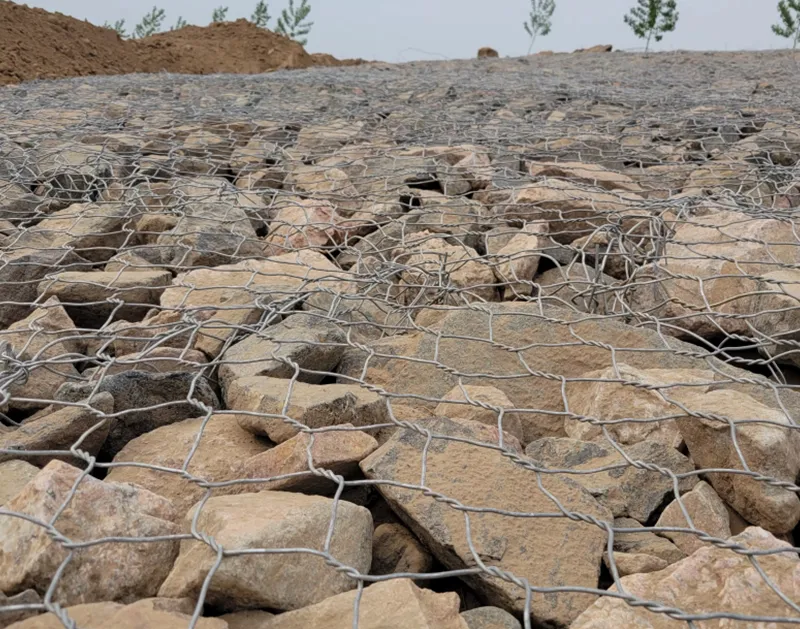

| Gabion Mattresses | Low-profile, compartmented double-twisted mesh units | Riverbed protection, channel lining, bank protection and erosion control | Mattress thickness, diaphragm spacing, stone grading and hydraulic conditions |
| Gabion Retaining Wall Systems | Stone-filled gravity wall assembled from modular gabion units | Roads, embankments, land development and landscape terraces | Wall height, foundation, soil conditions, drainage and surcharge load |

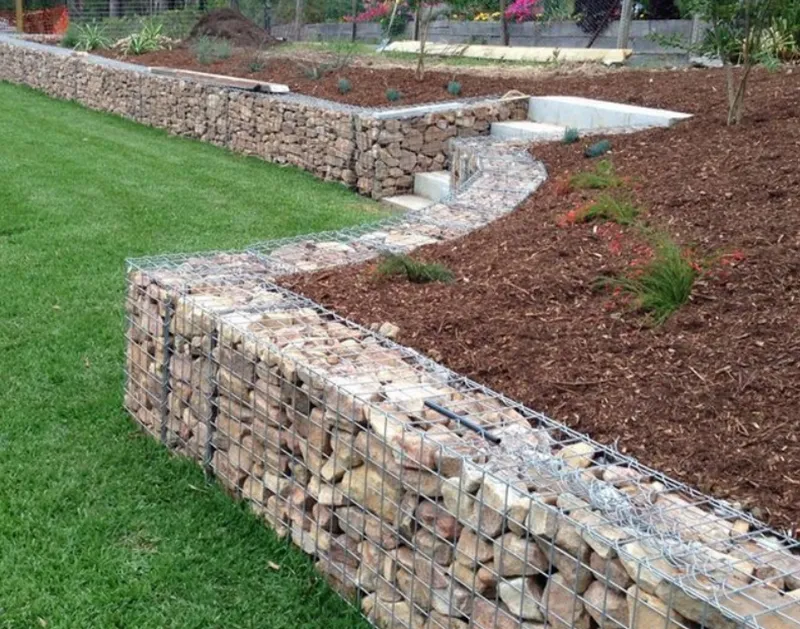

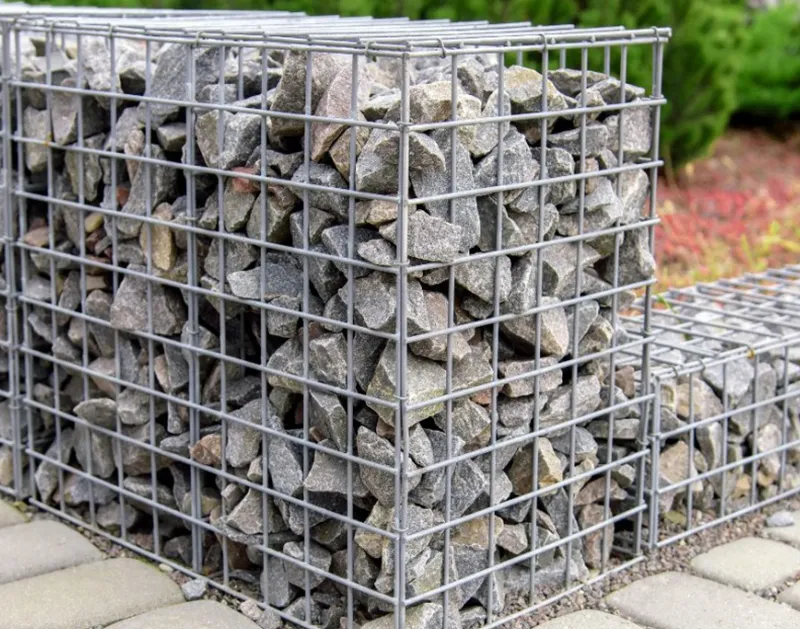

| Welded Mesh Gabions | Rigid welded wire panels connected by spirals or clips | Landscape walls, gabion fences, facades, noise barriers and decorative structures | Panel rigidity, weld quality, mesh opening, bracing and surface finish |
Woven gabions are generally preferred where flexibility and ground-movement tolerance are important. Welded gabions provide straighter faces and a more uniform appearance for architectural and landscape projects.
Core Gabion Specifications
| Parameter | Available Configuration |
| Wire Material | Low-carbon steel wire, galvanized wire, Zn-Al/Galfan wire or stainless steel on request |
| Woven Mesh Openings | 60 × 80 mm, 80 × 100 mm, 100 × 120 mm or project-specific sizes |
| Welded Mesh Openings | 50 × 50 mm, 75 × 75 mm, 100 × 100 mm or customized |
| Woven Wire Diameter | Commonly 2.0–4.0 mm, depending on mesh type and project specification |
| Welded Wire Diameter | Commonly 3.0–10.0 mm, depending on structural and appearance requirements |
| Common Basket Sizes | 1 × 1 × 1 m, 2 × 1 × 0.5 m, 2 × 1 × 1 m, 3 × 1 × 1 m and customized sizes |
| Common Mattress Sizes | Up to 6 × 2 × 0.3 m, with custom length, width and thickness available |
| Surface Treatment | Hot-dip galvanized, heavy galvanized, Zn-Al/Galfan, PVC/polymer coated or stainless steel |
| Connections | Lacing wire, spirals, clips, C-rings, diaphragms and internal bracing |
| Packing | Folded or flat-packed, steel-strapped, bundled or palletized for export |
Wire diameter, coating mass, coating thickness, tensile strength, elongation and dimensional tolerance should be confirmed according to the applicable project standard. ASTM A975, ASTM A974, EN 10223-3 or other requested requirements can be reviewed during quotation.
Why Choose our China Gabions Factory
· Factory-direct pricing — scalable production for large infrastructure orders.
· Engineering-grade materials and strict QC — suitable for civil, hydraulic and landscaping projects.
· Flexible finishes (galvanized, galfan, PVC, stainless) to suit coastal or inland applications.
· Fast sample & quotation turnarounds for feasibility checks and tender submissions.
Materials, Coatings and Durability
Common materials: low-carbon steel wire (double-twisted hexagonal), welded steel wire.
Coating and finishes:
· Hot-dip galvanized (standard) — economical, suitable for most inland projects.
· Galfan (zinc–aluminum alloy) — extended corrosion resistance vs. plain galvanizing.
· PVC coating — added protection and color options for landscape applications.
· Stainless steel — for high-corrosion or marine environments.
Provide ASTM/EN/BS references or third-party inspection certificates on request to support project specifications.
Applications
· Retaining walls and slope stabilization

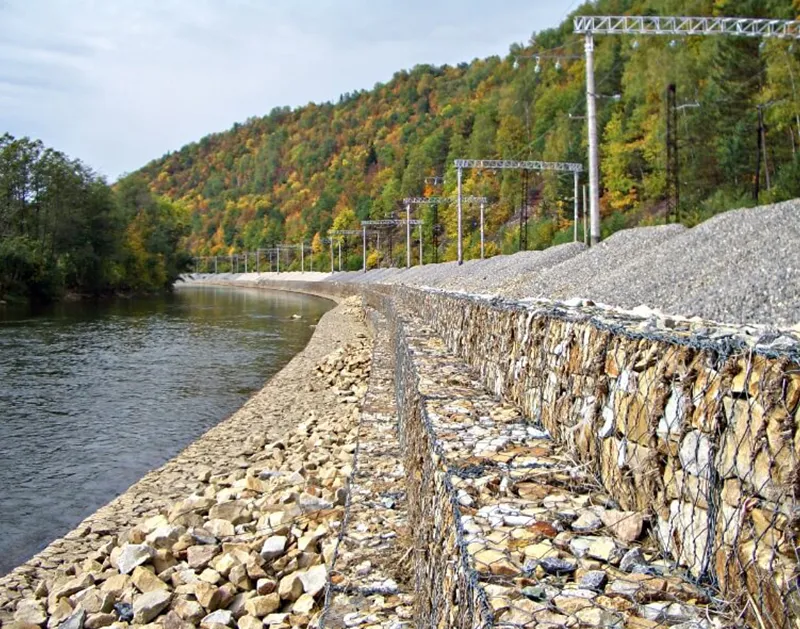

· Riverbank and channel lining (erosion control)
· Roadside protection and bridge abutments
· Flood control and coastal protection
· Architectural facades, garden walls and landscape features
Frequently Asked Questions
Q1: What standard gabion sizes are available?
A: Common sizes: 2.0×1.0×1.0 m, 3.0×1.0×1.0 m and custom sizes on request. Mesh and wire diameters vary by application.
Q2: Which coating is best for coastal projects?
A: For marine/coastal environments, galfan or stainless steel is recommended due to superior corrosion resistance.
Q3: Can you supply large project volumes?
A: Yes — as a professional wire mesh fence manufacturer we handle bulk orders and can provide production schedules, packing lists and FOB/CIF terms.
Q4: Do you provide installation support?
A: We provide installation manuals, stone-fill specifications and can coordinate with local contractors for large projects or provide remote technical support.
