What is a 358 Anti-Climb Fence?

A 358 anti-climb fence is a high-security welded wire mesh fencing system designed for maximum protection against climbing and cutting. It is made from heavy-duty steel wire with a thickness of 4 mm (8 gauge), and features a tightly spaced mesh structure measuring 76.2 mm × 12.7 mm (3" × 0.5").

This dense grid design makes it extremely difficult to gain a handhold or foothold, and highly resistant to cutting attempts using standard tools. Because of these characteristics, 358 fencing is widely used in high-security environments such as prisons, military facilities, airports, and critical infrastructure sites where perimeter protection is essential.

Why is it called “358”?

The name “358” refers directly to its key specifications:

• 3 = 3-inch mesh length

• 5 = 0.5-inch mesh height

• 8 = 8-gauge wire thickness

In metric terms, this equals approximately 76.2 mm × 12.7 mm mesh openings made from about 4 mm thick steel wire.

These small openings and thick wires are not just design details—they are the core reason for the fence’s high-security performance. The tight mesh structure prevents climbing, while the strong steel wires make cutting extremely difficult without specialized equipment.

Before looking deeper into its advantages, it’s important to understand that the “358” specification is essentially a shorthand that defines both the strength and anti-climb capability of the fence.

What Does “358” Mean in Anti-Climb Fence?

The designation “358” is not random—it describes the physical properties of the fence and explains its structure and function.

Breaking Down the Name: 3-5-8

The “3” refers to the vertical spacing between wires: every 3 inches (76.2 mm), there is a horizontal crosswire. The “5” refers to the horizontal spacing between vertical wires: 0.5 inches (12.7 mm). The “8” refers to the wire thickness, which is 8 gauge, approximately 4 mm.

Why Mesh Size and Wire Gauge Matter

This combination of tight mesh spacing, narrow openings, and thick wire creates a barrier with a very specific security function. It prevents fingers or toes from gaining a grip, making climbing extremely difficult. At the same time, the small openings make it difficult to insert cutting tools, and even if cutting is attempted, each cut only affects a small area, making penetration slow and difficult.

This is the core advantage of the 358 design—it resists both climbing and cutting, which are the two most common intrusion methods.

Now that the name is clear, we can better understand why this fence is considered such an effective security solution.

Why Is the 358 Fence So Effective?

The effectiveness of the 358 fence comes from its structural design and material properties.

1. Climb Resistance by Design

Most fences fail because they provide footholds or handholds. Chain-link fences can be gripped, and wider mesh or horizontal structures can be stepped on. However, the 358 mesh has extremely small openings, leaving no space for fingers or feet to gain a grip. This makes climbing extremely difficult unless specialized tools are used, and even then it is slow and highly noticeable.

2. Cut Resistance Against Intrusion Tools

Cut resistance is another key advantage. Standard fences can often be cut quickly using bolt cutters. In contrast, the 358 fence uses thick wire and a very tight mesh structure, making it difficult for cutting tools to fit or operate effectively. Any cutting attempt would require time, produce noise, and increase the chance of detection.

3. Clear Sight Lines for Surveillance

Despite its strength, the fence still maintains good visibility. The mesh is tight, but not solid, allowing clear sight through the structure. This is important for security monitoring, as it enables guards and cameras to observe both sides of the fence without obstruction.

4. Long-Term Durability in Harsh Environments

358 fences are typically made from galvanized steel and often coated with powder finishes for additional protection. This helps resist rust, corrosion, and environmental damage. As a result, the fence can maintain its structural integrity and appearance over long periods with minimal maintenance.

5. Clean Appearance Without a Hostile Look

Although designed for high security, the fence has a simple and clean appearance. Its straight lines and open structure provide security without creating a visually aggressive or intimidating barrier.

Because of these combined features, the 358 fence is widely used in many high-security environments.

Common Uses of 358 Anti-Climb Fence

Because of its strong security performance, the 358 fence is used in many high-risk and high-security environments.

1. Maximum-Security Facilities

In prisons, 358 fences are often used as a primary security barrier due to their resistance to climbing and cutting, as well as their high visibility for surveillance. Military bases and government facilities also use them in areas where strict access control is required.

2. Airports, Railways, and Transport Sites

358 fences are commonly installed in airports, railway depots, and power stations, where unauthorized access could lead to serious security risks. They provide a strong physical barrier while still allowing clear visibility for monitoring and surveillance systems.

3. Schools, Parks, and Public Buildings

In some cases, schools and public parks use 358 fencing to improve safety, especially where controlling access is important. The open mesh design maintains visibility and an open environment, while still preventing unauthorized entry or exit.

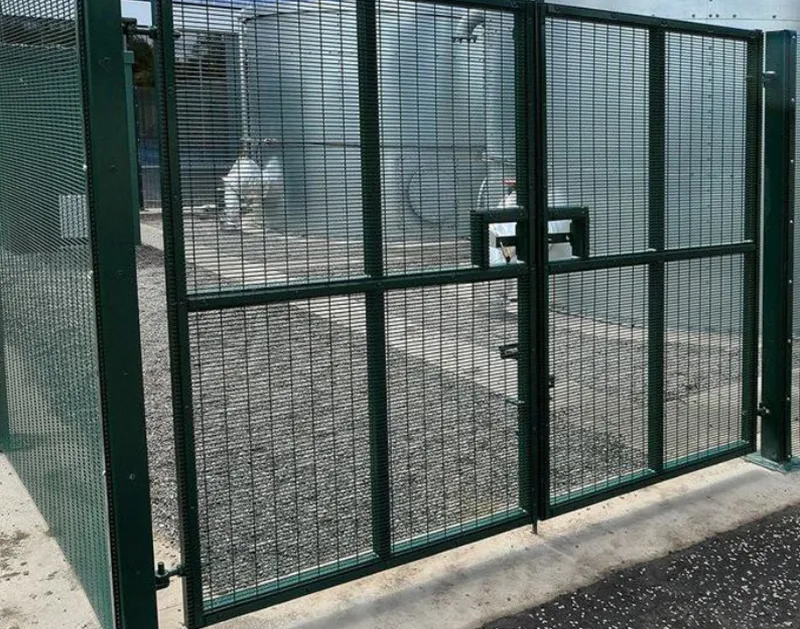

4. High-End Residential Applications

358 fences are also used in gated communities and high-end residential properties where enhanced security is required. Although less common in standard housing due to higher cost, they are a premium option for properties that prioritize safety.

Understanding these applications also helps in understanding how the fence is installed and what components make up its structure.

How to Install a 358 Anti-Climb Fence?

A 358 anti-climb fence is typically installed using a panel-based system, where each section of welded mesh is fixed to steel posts to form a continuous security barrier.

Standard Dimensions and Panel Sizes

The fence is usually supplied in panels around 2.5 meters wide, although dimensions may vary depending on the manufacturer. Panel heights also vary to suit different security requirements, commonly ranging from 2 meters, 2.4 meters, 3 meters, and in some cases up to 6 meters.

Post Systems and Clamp Bar Fixings

The mesh panels are secured to steel posts using clamp bars and tamper-resistant bolts. These fixings extend along the full height of the panel, making unauthorized removal extremely difficult without specialized tools. The posts are embedded and anchored in concrete foundations, providing strong structural stability and long-term durability.

Add-Ons: Barbed Wire, Sensors, and Gates

358 fencing systems can be integrated with additional security features such as barbed wire, razor wire coils, lighting systems, and motion sensors. These enhancements allow the fence to function not only as a physical barrier but also as part of a broader perimeter security system.

With these installation methods and add-on options, the 358 anti-climb fence can be adapted to meet different levels of security requirements.

What’s the Difference Between 358 and Other Fences?

Chain-Link Fencing: Low Cost, Low Security

Compared to a standard chain-link fence, 358 fencing provides a much higher level of security. Chain-link fences are relatively easy to climb and cut, and they offer limited resistance against intrusion. They can also sag or deform over time. While chain-link fencing may be suitable for low-security applications such as gardens or animal enclosures, it is not appropriate for high-security environments like prisons or data centers.

Palisade Fencing: Spikes vs. Visibility

Palisade fencing uses vertical steel pales with pointed or spiked tops, which makes it more visually intimidating and somewhat effective at discouraging climbing. However, it significantly reduces visibility compared to 358 mesh fencing. In addition, under sustained force, palisade fencing can be vulnerable to being pried apart. It may also be less suitable for urban or landscaped environments due to its more aggressive appearance.

Welded Mesh Panels: A Middle Ground

Standard welded mesh fencing systems, such as 3D fence panels or V-mesh panels, offer a balance between cost and security. They are stronger than chain-link fences but do not match the anti-climb and anti-cut performance of 358 fencing. Their larger mesh openings and thinner wires make them more suitable for medium-security applications such as schools, warehouses, or general perimeter fencing.

Which Fence Matches Your Risk Level?

Although 358 fencing typically has a higher initial cost, it often provides better long-term value due to its durability, low maintenance requirements, and superior security performance.

With these comparisons in mind, the final decision depends on the specific security level, budget, and application requirements of your project.
