AquaFlex Eco-Adaptive Riverbank Gabion System

AquaFlex Eco-Adaptive Riverbank Gabion System

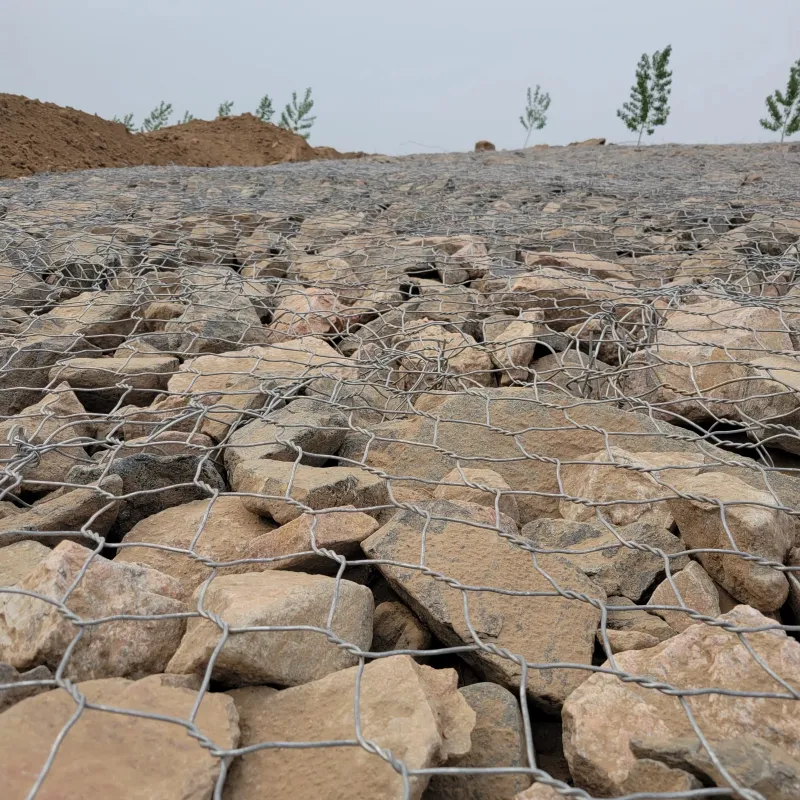

The AquaFlex gabion is a double-twisted hexagonal mesh structure (2.2mm wire diameter, 60×80mm mesh) designed for dynamic hydrological environments. Its high zinc-aluminum alloy coating (245g/m²) and optional 0.8mm PVC wrapping ensure 50+ years of corrosion resistance in freshwater, brackish, and tidal zones. The flexible design absorbs water flow energy, preventing scouring while promoting natural sediment deposition and vegetation growth, making it ideal for eco-sensitive river restoration projects.

Inquire Now

Application Scenarios

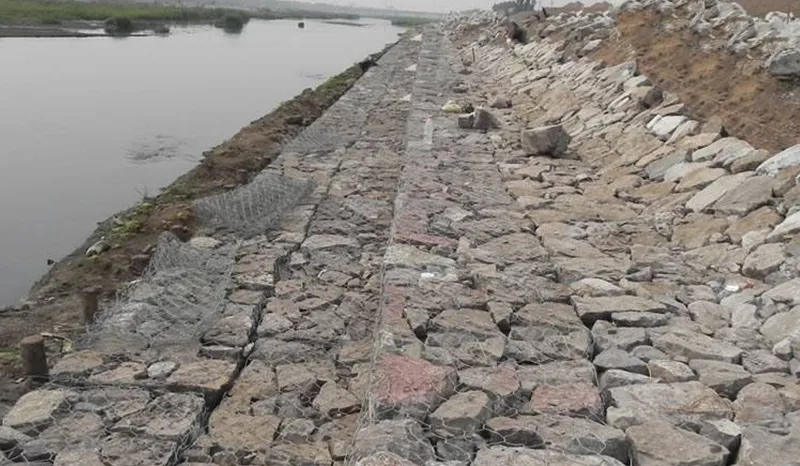

River Engineering: Bank stabilization, meander control, and channel realignment.

Erosion Control: Coastal dunes, lake shorelines, and stormwater channel protection.

Habitat Restoration: Fish spawning grounds, wetland creation, and riparian buffer zones.

Key Benefits & Unique Features

01

Hydrodynamic Efficiency

Reduces flow velocity by 35% compared to rigid concrete structures.
02

Self-Healing

Settles into substrate over time, creating a natural root-reinforced ecosystem.
03

Cost-Effective

30% cheaper than riprap and 50% faster to install than cellular confinement systems.
04

Carbon Negative

Each linear meter sequesters 15kg CO₂ through induced vegetation growth.
05

Bio-Acceptance

Mesh aperture size supports invertebrate colonization within 3 months.
06

UV Stability

PVC coating retains 95% flexibility after 2,000 hours QUV accelerated aging.
07

Flood Resilience

Withstands 200-year flood events without structural failure (tested to 7m/s flow).
08

Smart Monitoring

Optional integrated sensors for real-time strain, sediment, and water quality tracking.

Specifications

Hexagonal Wire Netting Product Specifications
Opening Size		Wire Gauge		Width Per Roll
Inch	mm	BWG	mm	Meter
3/8''	10	BWG 27-23	0.41-0.64	0.1-2m
1/2''	13	BWG 27-22	0.41-0.71	0.1-2m
5/8''	16	BWG 27-22	0.41-0.71	0.1-2m
3/4''	20	BWG 25-19	0.51-1.06	0.1-2m
1''	25	BWG 25-18	0.51-1.24	0.1-2m
1-1/4''	32	BWG 24-18	0.56-1.24	0.2-2m
1-1/2''	40	BWG 23-16	0.64-1.65	0.2-2m
2''	51	BWG 22-14	0.71-2.11	0.2-2m
2-1/2''	65	BWG 22-14	0.71-2.11	0.2-2m
3''	76	BWG 21-14	0.81-2.11	0.3-2m
4''	100	BWG 20-12	0.89-2.80	0.5-2m

Product Specifications
Product Name	Hexagonal Gabion Mesh / Chicken Wire Gabion
Material	Low Carbon Steel / Galvanized Wire / PVC Coated Wire
Mesh Type	Hexagonal mesh, 60×80mm / 80×100mm / Customized
Wire Diameter	2.0–4.0mm (customizable)
Surface Treatment	Hot-dip Galvanized / PVC Coated / Galfan Coated
Structure Feature	Flexible hexagonal mesh panels, connected with spirals, filled with stones
Key Features	Corrosion resistant, Flexible, Eco-friendly, Durable, Easy installation
Application	Riverbank protection, Slope stabilization, Landscaping, Retaining walls, Noise barriers
Packing & Delivery	Folded panels bundled with steel straps / Palletized / Customized packing
Customization	Mesh size, wire diameter, panel dimensions, coating options
Origin	Hebei, China
