Gabion Retaining Wall
River Gabion Baskets are wire mesh containers filled with natural stones or recycled materials, designed for erosion control, riverbank stabilization, and environmental restoration. Made from durable galvanized or PVC-coated steel wire, these flexible structures adapt to uneven terrain and water flow, providing a sustainable and cost-effective solution for hydraulic engineering projects.
Applications

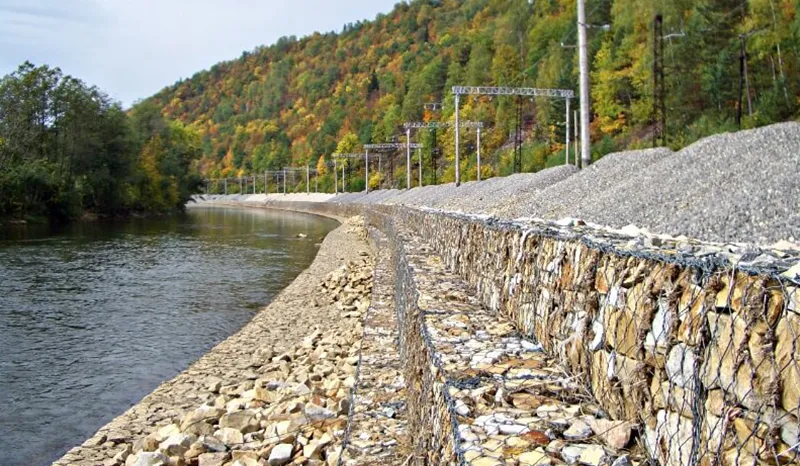

Riverbank & Stream Stabilization: Preventing soil erosion along rivers, streams, and canals.
Flood Control: Building retaining walls or spillways to manage water flow during heavy rainfall.
Slope Protection: Reinforcing embankments, hillsides, and coastal areas prone to landslides.
Ecological Restoration: Creating habitats for aquatic plants and animals while restoring natural riverbeds.
Infrastructure Support: Protecting bridges, culverts, and pipelines from scour and hydraulic pressure.
Benefits & Key Features Example
01
Erosion Resistance
Effectively absorbs and dissipates water energy, reducing soil loss.
02
Flexibility
Adapts to ground movement and water currents without cracking.
03
Eco-Friendly
Uses natural stone fill, promoting vegetation growth and biodiversity.
04
Cost-Effective
Lower installation and maintenance costs compared to rigid concrete structures.
05
Quick Installation
Modular design allows for rapid assembly, even in challenging environments.
06
Longevity
Corrosion-resistant coatings ensure decades of durability in wet conditions.
07
Double-Twisted Hexagonal Mesh
Enhances strength and prevents unraveling.
08
Galvanized/PVC-Coated Steel
Resists rust and chemical degradation.
09
Modular Design
Baskets can be stacked or connected for customizable structures.
10
Permeable Structure
Allows water to pass through, reducing hydrostatic pressure.
11
Lightweight & Portable
Easy to transport and handle in remote locations.
12
Aesthetic Integration
Blends naturally with landscapes when filled with local stones.
Example Use Case
A river restoration project in a flood-prone area uses River Gabion Baskets to stabilize banks, allowing vegetation to regrow while preventing further erosion. The flexible design withstands seasonal water level changes, reducing long-term maintenance costs.
This product combines engineering strength with environmental sustainability, making it ideal for modern hydraulic and ecological projects.
| Hexagonal Wire Netting Product Specifications | ||||
| Opening Size | Wire Gauge | Width Per Roll | ||
| Inch | mm | BWG | mm | Meter |
| 3/8'' | 10 | BWG 27-23 | 0.41-0.64 | 0.1-2m |
| 1/2'' | 13 | BWG 27-22 | 0.41-0.71 | 0.1-2m |
| 5/8'' | 16 | BWG 27-22 | 0.41-0.71 | 0.1-2m |
| 3/4'' | 20 | BWG 25-19 | 0.51-1.06 | 0.1-2m |
| 1'' | 25 | BWG 25-18 | 0.51-1.24 | 0.1-2m |
| 1-1/4'' | 32 | BWG 24-18 | 0.56-1.24 | 0.2-2m |
| 1-1/2'' | 40 | BWG 23-16 | 0.64-1.65 | 0.2-2m |
| 2'' | 51 | BWG 22-14 | 0.71-2.11 | 0.2-2m |
| 2-1/2'' | 65 | BWG 22-14 | 0.71-2.11 | 0.2-2m |
| 3'' | 76 | BWG 21-14 | 0.81-2.11 | 0.3-2m |
| 4'' | 100 | BWG 20-12 | 0.89-2.80 | 0.5-2m |
| Product Specifications | |
| Product Name | Hexagonal Gabion Mesh / Chicken Wire Gabion |
| Material | Low Carbon Steel / Galvanized Wire / PVC Coated Wire |
| Mesh Type | Hexagonal mesh, 60×80mm / 80×100mm / Customized |
| Wire Diameter | 2.0–4.0mm (customizable) |
| Surface Treatment | Hot-dip Galvanized / PVC Coated / Galfan Coated |
| Structure Feature | Flexible hexagonal mesh panels, connected with spirals, filled with stones |
| Key Features | Corrosion resistant, Flexible, Eco-friendly, Durable, Easy installation |
| Application | Riverbank protection, Slope stabilization, Landscaping, Retaining walls, Noise barriers |
| Packing & Delivery | Folded panels bundled with steel straps / Palletized / Customized packing |
| Customization | Mesh size, wire diameter, panel dimensions, coating options |
| Origin | Hebei, China |
FAQ
Q. Are you a factory/manufacturer or a trader?
We are a direct manufacturer with production lines and employees. Everything is flexible and there is no need to worry about additional costs from middlemen or traders.
Q. Which countries do your products mainly export to?
Our goods are mainly exported to Australia, Canada, the United Kingdom, the United States, Germany, Thailand, South Korea, etc.
Q. Can I get free samples?
If samples are provided, they can be obtained for free. If not, customization will be required.
Q. What is your minimum order quantity?
In fact, there is no minimum order quantity limit for our products. However, we usually provide a recommended order quantity that is easy to accept based on the price.
Q. Which payment methods can you accept?
We usually use methods such as wire transfer, letter of credit, PayPal, third-party custody.
Q. Can you provide customized labels or packaging services?
Yes, customized labels or packaging have always been popular. Most of our customers' products have adopted this service.
