Welded Mesh Gabions
FortiMesh gabions are precision-engineered from 8mm galvanized steel wire, robotically welded at 100×100mm grid intervals for unmatched structural integrity. Rated for loads up to 50kN/m², these rigid baskets (1m×1m×1m standard size) resist deformation under heavy stone fill (100–300mm rocks). Ideal for high-stress environments like highway retaining walls and coastal defenses, they outperform traditional woven gabions in load-bearing capacity and longevity.
Application Scenarios

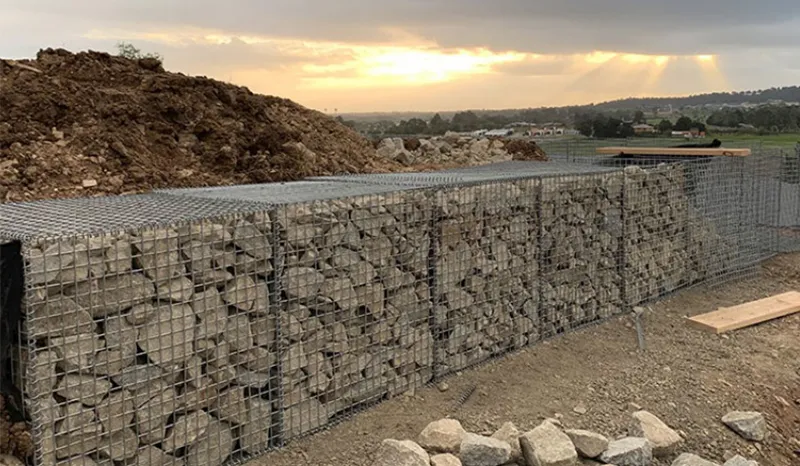

Civil Engineering: Bridge abutments, slope stabilization, and noise barrier foundations.
Maritime Construction: Breakwaters, jetty reinforcements, and harbor revetments.

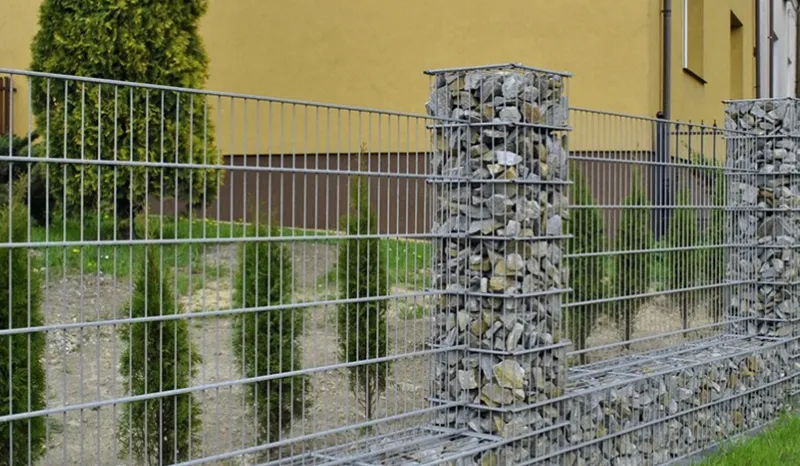

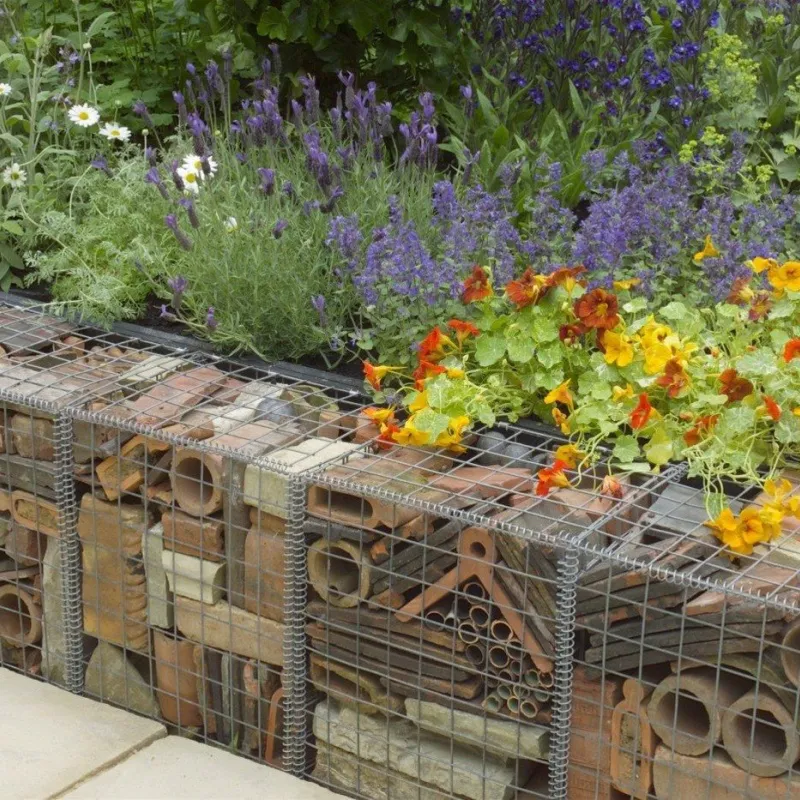

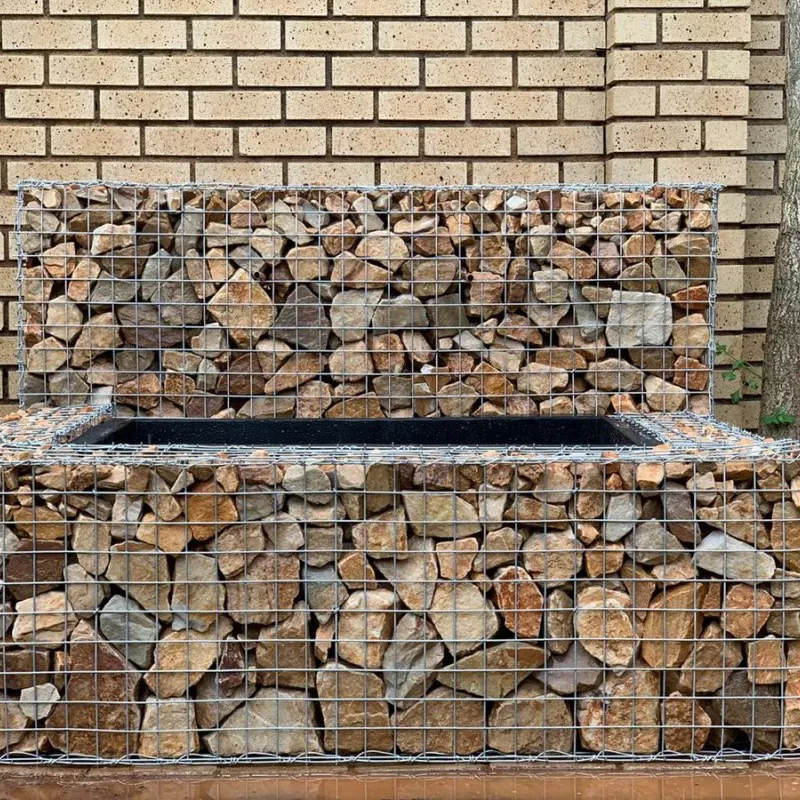

Architectural Landscaping: Terraced gardens, waterfall features, and decorative retaining walls.
Key Benefits & Unique Features
01
Longevity
75-year design life in saline environments (ASTM B117 salt spray tested).
02
Low Maintenance
No need for tensioning or realignment post-installation.
03
Material Savings
Uses 30% less steel than comparable woven gabions due to optimized welding patterns.
04
Aesthetic Flexibility
Stainless steel or powder-coated finishes in 200+ colors.
05
Anti-Corrosion System
Triple-layer coating (zinc + epoxy + polyester) for C5-M corrosion class environments.
06
Seismic Resistance
Flexible joints allow 15° movement without structural failure.
07
Quick Installation
Pre-assembled panels reduce field labor by 50% vs. woven alternatives.
09
Eco-Certification
Compliant with EU Ecolabel and LEED v4.1 materials credits.
Specifications
| Product Specifications | ||||
| Mesh Size | Wire Diameter | Width & Length | ||
| In Inch | In MM | In BWG | In MM | Width:0.5m-2.0mLength:25m, 30mOther sizes can be made as request |
| 1/2" | 12.7mm | BWG16-BWG28 | 1.65mm-0.356mm | |
| 3/4" | 19.05mm | BWG16-BWG27 | 1.65mm-0.406mm | |
| 1" | 25.4mm | BWG14-BWG20 | 2.1mm-0.88mm | |
| 1" x 2" | 25.4 x 50.8mm | BWG14-BWG19 | 2.1mm-1.06mm | |
| 2" | 50.8mm | BWG12-BWG18 | 2.76mm-1.24mm | |
| 1/4" | 6.35mm | BWG19-BWG24 | 1.06mm-0.56mm | |
| 3/8" | 9.52mm | BWG18-BWG27 | 1.24mm-0.406mm | |
| 5/8" | 16mm | BWG18-BWG27 | 1.24mm-0.406mm | |
| New mesh sizes: 1" x 1/2", 30 x 30mm, 60 x 60mm | ||||
| Product Specifications | |
| Product Name | Welded Wire Mesh Gabions |
| Material | Low Carbon Steel Wire / Galvanized Wire / Galfan Wire |
| Mesh Size | 50×50mm / 75×75mm / 100×100mm / Customized |
| Wire Diameter | 3.0–6.0mm (customizable) |
| Surface Treatment | Hot-dip Galvanized / PVC Coated / Galfan Coated |
| Structure Feature | Rigid welded mesh panels, connected with spirals or clips, filled with stones |
| Key Features | High strength, Corrosion resistance, Easy installation, Eco-friendly |
| Application | Retaining walls, Slope protection, River banks, Landscaping, Noise barriers |
| Packing & Delivery | Bundled with steel straps, wrapped in pallet, customized packaging available |
| Customization | Mesh size, wire diameter, panel dimensions, coating options |
| Origin | Hebei, China |
FAQ
Q. Are you a factory/manufacturer or a trader?
We are a direct manufacturer with production lines and employees. Everything is flexible and there is no need to worry about additional costs from middlemen or traders.
Q. Which countries do your products mainly export to?
Our goods are mainly exported to Australia, Canada, the United Kingdom, the United States, Germany, Thailand, South Korea, etc.
Q. Can I get free samples?
If samples are provided, they can be obtained for free. If not, customization will be required.
Q. What is your minimum order quantity?
In fact, there is no minimum order quantity limit for our products. However, we usually provide a recommended order quantity that is easy to accept based on the price.
Q. Which payment methods can you accept?
We usually use methods such as wire transfer, letter of credit, PayPal, third-party custody.
Q. Can you provide customized labels or packaging services?
Yes, customized labels or packaging have always been popular. Most of our customers' products have adopted this service.
