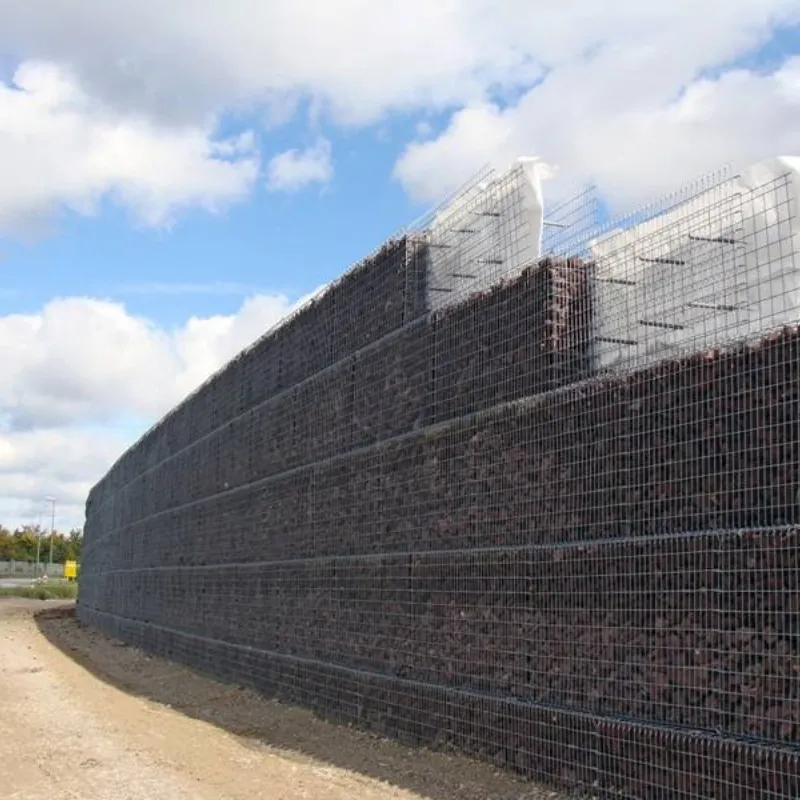

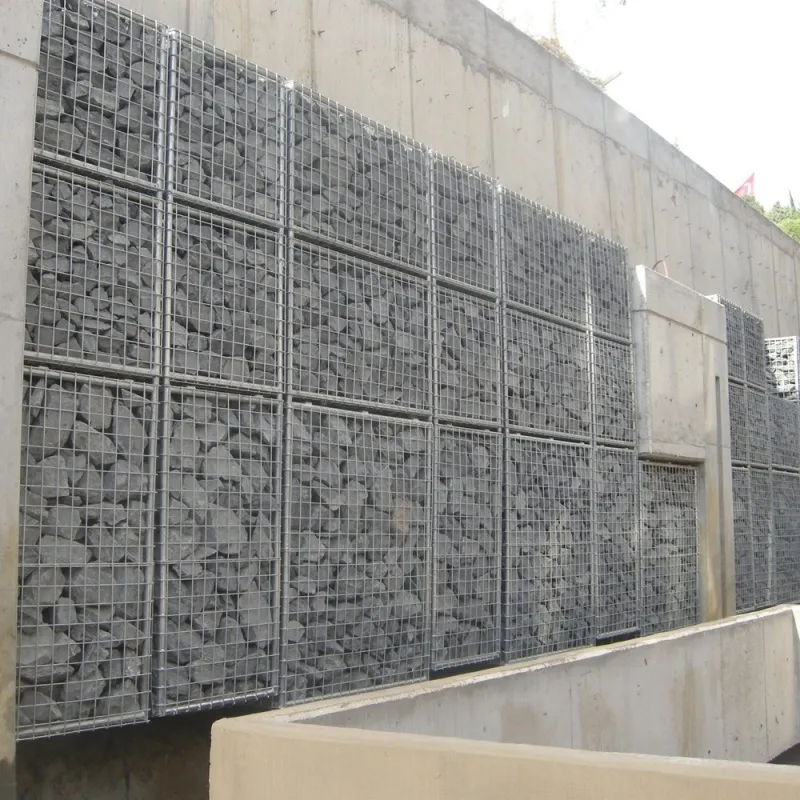

Welded Mesh Gabions
SteelCore gabions are engineered for high-load civil engineering applications, featuring 6mm–10mm galvanized steel wires robotically welded into a rigid 100×100mm grid. Rated for vertical loads up to 80kN/m² and lateral pressures of 150kPa, these baskets (2m×1m×1m standard size) resist deformation under heavy stone fill (150–400mm rocks). Ideal for retaining walls, bridge abutments, and coastal defenses, they outperform traditional woven gabions in structural stability and durability.
Application Scenarios

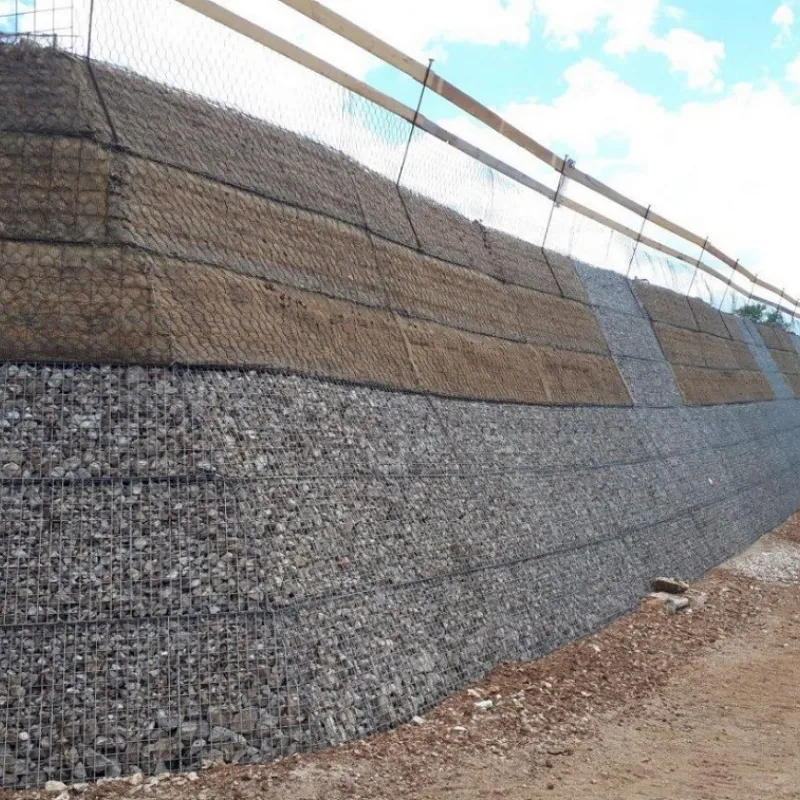

Transportation Infrastructure: Highway slope stabilization, railway noise barriers, and tunnel portals.
Maritime Engineering: Harbor breakwaters, seawall reinforcements, and offshore platform foundations.
Industrial Projects: Tailings dams, mining waste containment, and factory perimeter walls.
Key Benefits & Unique Features
01
Longevity
100-year design life in aggressive environments (verified by ASTM G85 salt spray tests).
02
Low Maintenance
No need for post-installation tensioning or realignment.
03
Material Efficiency
Uses 25% less steel than woven gabions due to optimized welding patterns.
04
Aesthetic Versatility
Stainless steel or powder-coated finishes in 200+ colors to match architectural designs.
05
Seismic Resilience
Flexible joints allow 20° movement without structural failure (tested to Eurocode 8).
06
Anti-Corrosion System
Triple-layer coating (zinc + epoxy + polyester) for C5-M corrosion class areas.
07
Quick Assembly
Pre-welded panels reduce field labor by 60% vs. traditional woven gabions.
08
Eco-Certification
Compliant with EU Ecolabel and CRH’s Sustainable Construction Guidelines.
Specifications
| Product Specifications | |
| Product Name | Welded Wire Mesh Gabions |
| Material | Low Carbon Steel Wire / Galvanized Wire / Galfan Wire |
| Mesh Size | 50×50mm / 75×75mm / 100×100mm / Customized |
| Wire Diameter | 3.0–6.0mm (customizable) |
| Surface Treatment | Hot-dip Galvanized / PVC Coated / Galfan Coated |
| Structure Feature | Rigid welded mesh panels, connected with spirals or clips, filled with stones |
| Key Features | High strength, Corrosion resistance, Easy installation, Eco-friendly |
| Application | Retaining walls, Slope protection, River banks, Landscaping, Noise barriers |
| Packing & Delivery | Bundled with steel straps, wrapped in pallet, customized packaging available |
| Customization | Mesh size, wire diameter, panel dimensions, coating options |
| Origin | Hebei, China |
| Product Specifications | ||||
| Mesh Size | Wire Diameter | Width & Length | ||
| In Inch | In MM | In BWG | In MM | Width:0.5m-2.0mLength:25m, 30mOther sizes can be made as request |
| 1/2" | 12.7mm | BWG16-BWG28 | 1.65mm-0.356mm | |
| 3/4" | 19.05mm | BWG16-BWG27 | 1.65mm-0.406mm | |
| 1" | 25.4mm | BWG14-BWG20 | 2.1mm-0.88mm | |
| 1" x 2" | 25.4 x 50.8mm | BWG14-BWG19 | 2.1mm-1.06mm | |
| 2" | 50.8mm | BWG12-BWG18 | 2.76mm-1.24mm | |
| 1/4" | 6.35mm | BWG19-BWG24 | 1.06mm-0.56mm | |
| 3/8" | 9.52mm | BWG18-BWG27 | 1.24mm-0.406mm | |
| 5/8" | 16mm | BWG18-BWG27 | 1.24mm-0.406mm | |
| New mesh sizes: 1" x 1/2", 30 x 30mm, 60 x 60mm | ||||
FAQ
Q. Are you a factory/manufacturer or a trader?
We are a direct manufacturer with production lines and employees. Everything is flexible and there is no need to worry about additional costs from middlemen or traders.
Q. Which countries do your products mainly export to?
Our goods are mainly exported to Australia, Canada, the United Kingdom, the United States, Germany, Thailand, South Korea, etc.
Q. Can I get free samples?
If samples are provided, they can be obtained for free. If not, customization will be required.
Q. What is your minimum order quantity?
In fact, there is no minimum order quantity limit for our products. However, we usually provide a recommended order quantity that is easy to accept based on the price.
Q. Which payment methods can you accept?
We usually use methods such as wire transfer, letter of credit, PayPal, third-party custody.
Q. Can you provide customized labels or packaging services?
Yes, customized labels or packaging have always been popular. Most of our customers' products have adopted this service.
